Applications
Pneumatic discharge of powder (lime, cement, fertilizers, etc.), grain, sand, silica, minerals, or sized products (fertilizers, PVC granulates, cereals, etc.).
Sand and shot blasting of buildings and metal parts.
Advantages
- Highly resistant to abrasion due to friction and atmospheric conditions.
- Electrical conductivity is assured by the tube compound together with a metal braid.
- Excellent resistance to bending and twisting.
Design

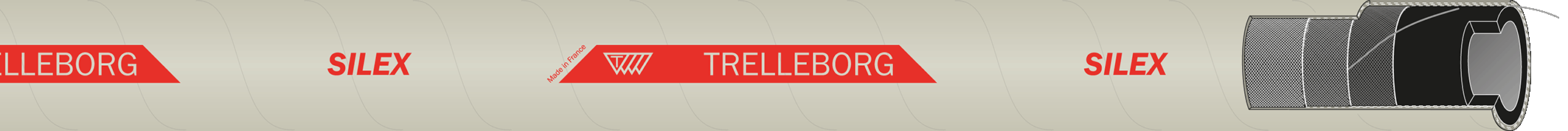

Technical drawing
Overview
Inner tube
wear resistant NR, black, smooth.
Reinforcement
synthetic textile
Cover
weather resistant NR, grey, fabric impression.
Temperature range
-30 to +70
Technical Specifications
| ID (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number |
¤ Upon availability. * Tolerance on length: ± 1 % (ISO 1307 Standard)
