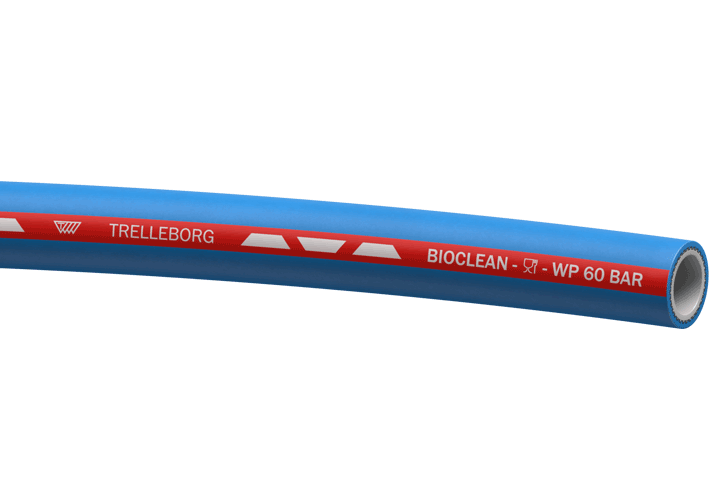

BIOCLEAN

Applications

High pressure cleaning specifically for food industries. Can also be used for transfer of any liquid foodstuffs.

Advantages

- Very flexible. - Non-marking cover. - Food grade quality white inner tube, oil resistant. - Branding over red stripe for easy and quick identification. - Contains no phthalate.

Overview

Inner tube

food grade quality oil resistant NBR, white, smooth.

Reinforcement

synthetic textile

Cover

oil and weather resistant NBR/PVC, blue, smooth.

Temperature range

-20 to +100

Standard/Approval

Specially designed fittings are available, please contact us for further information in order to get optimum connections.

Additional information

Please refer to our cleaning guidelines, available upon request and from our website.

Technical Specifications

ID (mm)	OD (mm)	Working Pressure (bar)	Bursting pressure (bar)	Max. vacuum (bar)	Bending radius (mm)	Weight (kg/m)	Length (m)	Article number
9.5	18.0	60	180		60	5.100	20.00	5026110
9.5	18.0	60	180		60	10.200	40.00	5026113
9.5	18.0	60	180		60	20.400	80.00	5026114
9.5	18.0	60	180		60	30.600	120.00	5026115
12.7	22.0	60	180		70	6.740	20.00	5012778
12.7	22.0	60	180		70	13.480	40.00	5012779
12.7	22.0	60	180		70	26.960	80.00	5026111
12.7	22.0	60	180		70	40.440	120.00	5026112
7.9	15.9	60	180		50	4.060	20.00	5026076
7.9	15.9	60	180		50	8.120	40.00	5026077
7.9	15.9	60	180		50	24.360	120.00	5026109
