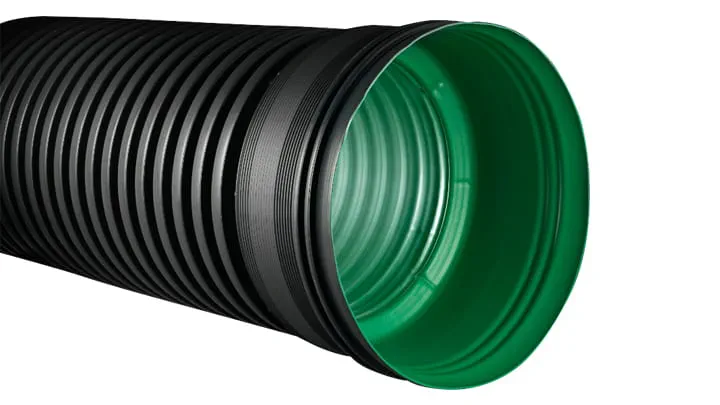

Spécialement conçu pour une utilisation avec la plupart des tailles
ADS, Hancor, Lane, N-Flow, Quality Culvert, JM Eagle and Contech A2000
Conception et fonction du joint

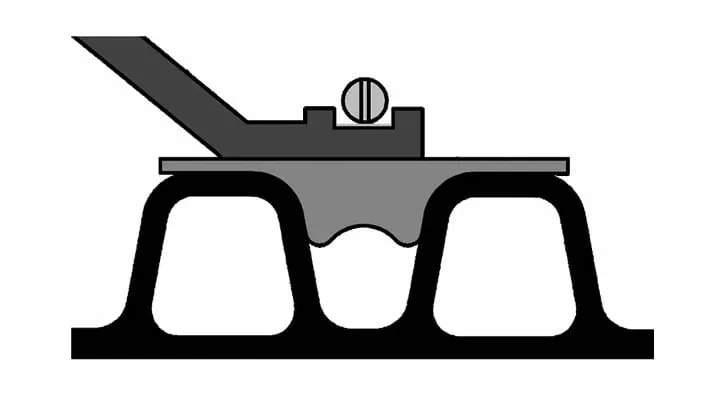

La conception unique de notre adaptateur de tuyau répartit la force du collier de serrage sur notre raccord Kor-N-Seal, directement contre les parois internes des tuyaux annelés, créant une étanchéité à l'eau jusqu'à 24 pouces*.
Advantages et caractéristiques
- Fournit une bonne surface d'étanchéité sur le tuyau en PEHD annelé.
- Facile à installer – étirer simplement le joint sur le tuyau à l'endroit désiré.
- Conforme à la norme ASTM C923 lorsqu'il est utilisé avec un raccord Kor-N-Seal®
Dimensions disponibles
| Taille du tuyau | Marque du tuyau | ØExt tuyau réf. +1/4 |
N° de pièce adaptateur | Raccord Kor-N-Seal | Capacité d'étanchéité |
|---|---|---|---|---|---|
|
8 |
ADS | 9 1/8 | CGA-8A | S106-12 or S406-12 | WT |
| Hancor | 9 1/8 |
CGA-8H |
WT |
||
| Lane | 9 7/16 |
CGA-8L |
WT |
||
| 10 | ADS |
11 3/8 |
CGA-10A | S106-16A |
WT |
| Hancor |
11 3/8 |
CGA-10H |
WT |
||
| Lane |
11 3/4 |
CGA-10L |
WT |
||
| 12 | ADS | 14 3/8 | CGA-12A |
S106-16T or S106-20BWS |
WT |
| Hancor |
14 3/8 |
CGA-12H |
WT |
||
| Lane | 14 9/16 |
CGA-12L |
S106-20BWS |
WT | |
| JM Eagle | 14 1/4 | CGA-12JM |
ST | ||
| Quality Culvert |
14 1/2 | CGA-12Q |
ST |
||
| Baughman | 14 1/2 | CGA-12B |
ST |
||
| N-Flow | 15 | CGA-12N |
ST |
||
| Contech A2000 | 12 3/4 | CGA-12C |
S106-16A |
WT |
|
| 15 | ADS |
17 1/2 | CGA-15A |
S106-20WS, S206-20L |
WT |
| Hancor |
17 1/2 | CGA-15H |
WT |
||
| Lane |
17 7/16 | CGA-15L |
WT |
||
| Baughman |
18 1/4 |
CGA-15B |
S206-22 or S06-24A |
ST |
|
| N-Flow |
18 | CGA-15N |
ST |
||
| Quality Culvert | 17 1/2 | CGA-15Q |
S106-20WS, S206-20L |
ST |
|
| JM Eagle |
17 1/2 | CGA-15JM |
ST |
||
| Contech A2000 |
15 5/8 | CGA-15C |
S106-20AWS |
WT |
|
| 18 | ADS |
21 3/16 | CGA-18A |
S206-24, S306-24L |
WT |
| Hancor | 21 3/16 | CGA-18H |
WT |
||
| Lane | 21 3/16 | CGA-18L |
WT |
||
| Baughman |
21 4/19 | CGA-18B |
ST | ||
| N-Flow | 21 | CGA-18N |
ST | ||
| Quality Culvert |
21 5/16 | CGA-18Q |
ST | ||
| Contech A2000 | 19 1/4 | CGA-18C |
S206-22L, S306-22L or S206-24A |
WT | |
| JM Eagle |
20 7/8 |
CGA-18JM |
S206-24 |
WT | |
| 21 | Contech A2000 |
22 9/16 | CGA-21C |
S206-26/ S306-26 | WT |
| 24 | ADS |
27 3/4 | CGA-24A |
S206-30L-32, S306-30L-32 | WT |
| Hancor | 27 3/4 |
CGA-24H |
WT |
||
| Lane | 28 | CGA-24L |
S206-32, S306-32 | WT |
|
| Baughman | 28 1/2 | CGA-24B |
ST | ||
| N-Flow | 28 | CGA-24N |
ST | ||
| Quality Culvert | 2715/16 | CGA-24Q |
S206-30L-32, S306-30L-32 | ST | |
| Contech A2000 | 25 1/2 | CGA-24C |
S206-28L, S306-28L | WT |
| Taille du tuyau | Marque de tuyau | ØExt tuyau réf. +1/4 |
N° de pièce adaptateur | Raccord kor-N Seal | Capacité d'étanchéisation |
|---|---|---|---|---|---|
| 24 | JM Eagle |
27 1/2 | CGA-24JM |
S206-30L |
ST |
| 30 | ADS |
35 | CGA-30A |
S206-38L, S306-38L |
ST |
| Hancor |
36 | CGA-30H |
S206-40, S306-40 |
ST |
|
| N-Flow |
35 | CGA-30N |
S206-38L, S306-38L |
ST |
|
| Baughman |
35 13/20 |
CGA-30B |
S206-40, S306-40-STORM |
ST |
|
| Quality Culvert |
34 7/8 | CGA-15Q |
S206-38L, S306-38L-STORM |
ST |
|
| Lane | 34 3/4 | CGA-30L |
ST |
||
| Contech A2000 |
32 3/16 | CGA-30C |
S206-36, S306-36 |
ST |
|
| JM Eagle |
34 5/8 | CGA-30JM |
S206-38, S306-38-STORM |
ST |
|
| 36 | ADS |
41 7/8 | CGA-36A |
S206-44L-46, S306-44L-46 |
ST |
| Hancor | 41 3/8 | CGA-36H |
ST |
||
| Lane | 40 7/8 | CGA-36L |
S206-44L, S306-44L-STORM |
ST |
|
| Baughman |
41 1/2 | CGA-36B |
ST | ||
| N-Flow | 41 1/8 | CGA-36N |
ST | ||
| Quality Culvert |
41 3/8 | CGA-36Q |
ST | ||
| Contech A2000 | 38 3/4 | CGA-36C |
S206-42L, S306-42L |
ST |
|
| JM Eagle |
41 1/2 |
CGA-36JM |
S206-44L |
ST |
|
| 42 | ADS |
47 11/16 | CGA-42A |
S206-52L | ST |
| Hancor | 47 15/16 |
CGA-42H |
ST |
||
| Baughman | 48 1/5 | CGA-42B |
ST |
||
| N-Flow |
48 | CGA-42N |
ST | ||
| Quality Culvert |
48 1/4 | CGA-42Q |
ST | ||
| Lane | 47 3/8 | CGA-42L |
S206-52 |
ST | |
| JM Eagle |
47 3/8 |
CGA-42JM |
ST | ||
| 48 | ADS |
53 7/16 | CGA-48A |
S206-58L |
ST |
| Hancor |
53 11/16 | CGA-48H |
ST |
||
| Lane | 54 | CGA-48L |
ST |
||
| Baughman | 54 3/10 | CGA-48B |
ST |
||
| N-Flow | 54 | CGA-48N |
ST |
||
| Quality Culvert |
54 3/4 | CGA-48Q |
ST |
||
| JM Eagle | 53 13/16 | CGA-48JM |
S206-58 |
ST |
|
| 54 | Hancor | 60 15/16 | CGA-54H |
S206-64L, S206-66 |
ST |
| 60 | ADS | 66 1/4 | CGA-60A |
S206-70L | ST |
| Hancor | 67 3/16 | CGA-60H |
S206-72 | ST |
|
|
WT= étanche à l'eau |
|||||
|
ST= étanche au sol |
|||||
Téléchargements
Corrugated Pipe Adapter
Fiche technique en anglais
