Applications

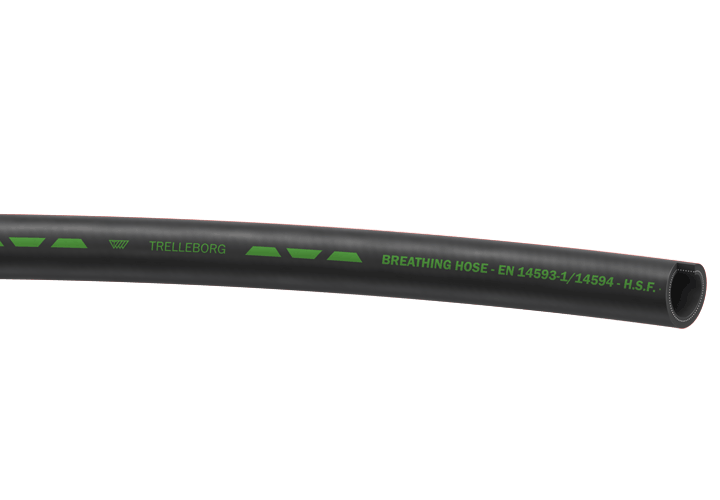

Supply line for fresh air breathing masks and compressed air supply.

Advantages

- Safe and durable. - High temperature resistance. - Very flexible. - Abrasion resistant cover. - Antistatic.

Design

Technical drawing
Overview
Inner tube
EPDM, black, smooth.
Reinforcement
aramid braided.

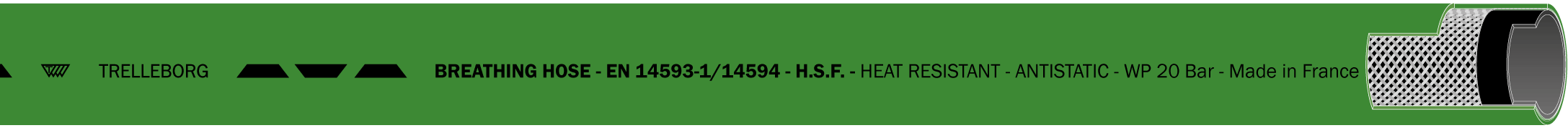

Cover
EPDM, black for ID 7.2mm, black or green for ID 9.5mm, green for ID 20mm, smooth.
Temperature range
-40 to +120
Technical Specifications
ID (mm) OD (mm) Working Pressure (bar) Bursting pressure (bar) Max. vacuum (bar) Bending radius (mm) Weight (kg/m) Length (m) Article number
7.2
14.2
10
 80 100 2.600 20.00 5501733
7.2
14.2
10
 80 100 5.200 40.00 5501734
7.2
14.2
10
 80 100 6.500 50.00 5503734
7.2
14.2
10
 80 100 10.400 80.00 5501735
9.5
19
10
 80 125 4.760 20.00 5501736
9.5
19
10
 80 125 9.520 40.00 5501737
9.5
19
10
 80 125 11.900 50.00 5503600
9.5
19
10
 80 125 19.040 80.00 5501738
9.5
19
10
 80 125 10.600 40.00 5600770
¤ Upon availability.
* Tolerance on length: ± 1 % (ISO 1307 Standard)
LOAD CAPACITY PER TIRE
Notes
Downloads

Product Sheet

Product Sheet (PDF)

Product Sheet

Handling guideline

(PDF)

Open Download

Storage Guideline

(PDF)

Open Download
