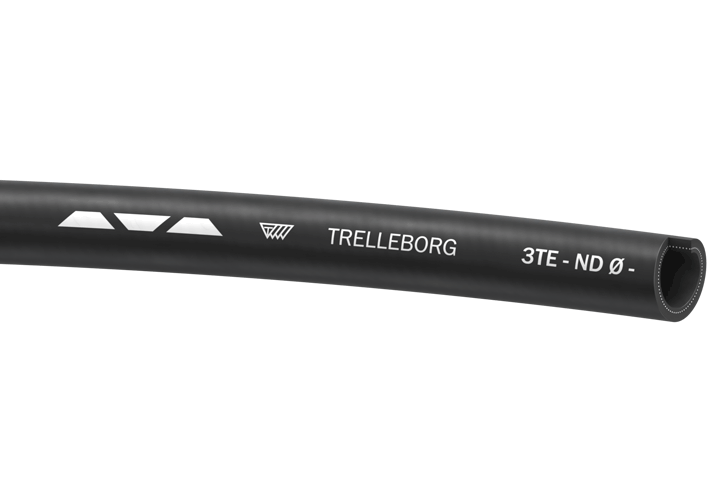

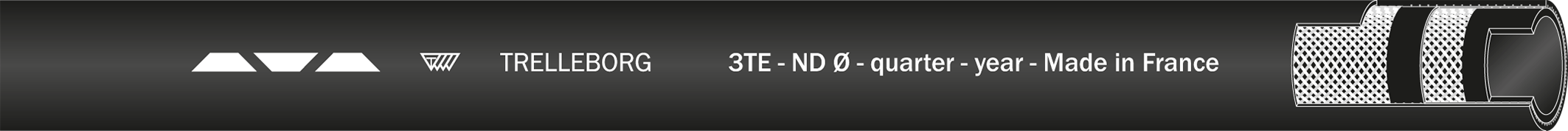

Applications
Textile reinforced rubber hose for hydraulic control lines.
Discharge under pressure of hydraulic fluids, grease, air and water.
Advantages
Light weight and flexible due to the textile reinforcement.
Elimination of vibrations in hydraulic lines.
Hose cover is highly resistant to oil and grease.
Design
Overview
Inner tube
oil resistant NBR, black, smooth.
Reinforcement
two textile braids
Cover
oil and weather resistant CR, black, smooth.
Additional information
Delivery terms for every order:
50% in fixed length ;
50% in random lengths:
10-39m for all DN,
41-119m for DN 4.8 to 15.9,
41-79m for DN 19 to 25.4.
50% in fixed length ;
50% in random lengths:
10-39m for all DN,
41-119m for DN 4.8 to 15.9,
41-79m for DN 19 to 25.4.
Technical Specifications
| ID (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number |
9.5 |
18.5 |
110 |
440 | 70 | 20.320 | 80.00 | 0060498 | |
9.5 |
18.5 |
110 |
440 | 70 | 30.480 | 120.00 | 0060499 | |
12.7 |
21.7 |
93 |
370 | 85 | 36.000 | 120.00 | 0060503 | |
15.9 |
25.9 |
80 |
320 | 105 | 31.280 | 80.00 | 0060506 | |
15.9 |
25.9 |
80 |
320 | 105 | 46.920 | 120.00 | 0060507 | |
19.0 |
29.0 |
70 |
280 | 130 | 19.040 | 40.00 | 0060509 | |
19.0 |
29.0 |
70 |
280 | 130 | 38.080 | 80.00 | 0060510 | |
25.4 |
35.9 |
55 |
220 | 150 | 26.080 | 40.00 | 0060512 | |
25.4 |
35.9 |
55 |
220 | 150 | 39.120 | 60.00 | 5008340 | |
38.1 |
49.6 |
40 |
160 | 240 | 19.900 | 20.00 | 0070160 | |
38.1 |
49.6 |
40 |
160 | 240 | 39.800 | 40.00 | 0070159 | |
4.8 |
12.7 |
160 |
640 | 40 | 5.520 | 40.00 | 0060485 | |
4.8 |
12.7 |
160 |
640 | 40 | 11.040 | 80.00 | 0060486 | |
4.8 |
12.7 |
160 |
640 | 40 | 16.560 | 120.00 | 0060487 | |
50.8 |
62.3 |
33 |
140 | 300 | 54.040 | 40.00 | 0070161 | |
6.4 |
14.6 |
145 |
585 | 45 | 6.640 | 40.00 | 0060489 | |
6.4 |
14.6 |
145 |
585 | 45 | 13.280 | 80.00 | 0060490 | |
6.4 |
14.6 |
145 |
585 | 45 | 19.920 | 120.00 | 0060491 | |
7.9 |
16.9 |
130 |
520 | 55 | 27.840 | 120.00 | 0060495 |
¤ Upon availability.
* Tolerance on length: ± 1 % (ISO 1307 Standard)
* Tolerance on length: ± 1 % (ISO 1307 Standard)
