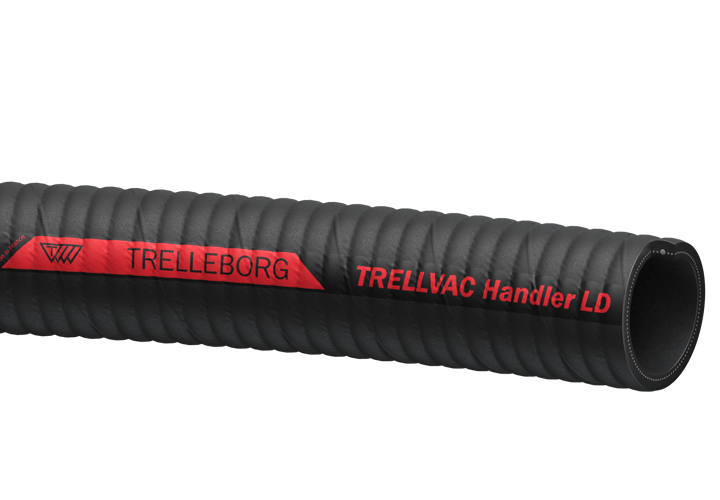

Applications
For industrial vacuum cleaners and cleaning systems.
Useful for suction of drainage sludge, sand, etc.
Advantages
Light and flexible design.
Very good wear resistance.
Especially useful when low weight and easy handling are valued.
Design

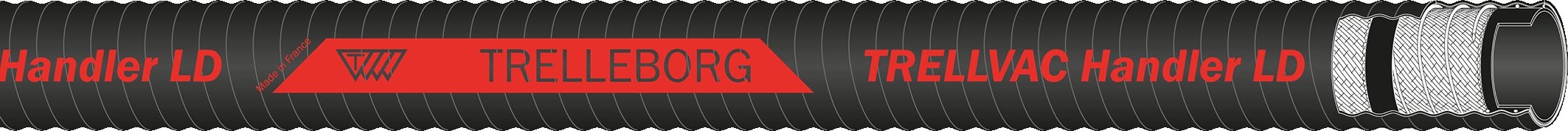

Technical drawing
Overview
Inner tube
wear resistant NR, black, smooth.
Reinforcement
synthetic textile cords with embedded steel helix
Cover
wear and weather resistant SBR, black, corrugated.
Temperature range
-30 to +80
Additional information
OD measured on top of corrugation.
Max vacuum : 0,9 bar
Max vacuum : 0,9 bar
Technical Specifications
| ID (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number |
51 |
61.0 |
5 |
15 | 0.9 | 85 | 22.560 | 20.00 | 5500748 |
51 |
61.0 |
5 |
15 | 0.9 | 85 | 45.120 | 40.00 | 2914510 |
60 |
70.0 |
5 |
15 | 0.9 | 105 | 25.860 | 20.00 | 5500749 |
60 |
70.0 |
5 |
15 | 0.9 | 105 | 51.720 | 40.00 | 2914520 |
63 |
73.0 |
5 |
15 | 0.9 | 110 | 27.020 | 20.00 | 5500750 |
63 |
73.0 |
5 |
15 | 0.9 | 110 | 54.040 | 40.00 | 2891580 |
76 |
86.5 |
5 |
15 | 0.9 | 135 | 32.840 | 20.00 | 5500751 |
76 |
86.5 |
5 |
15 | 0.9 | 135 | 65.680 | 40.00 | 2913940 |
¤ Upon availability.
* Tolerance on length: ± 1 % (ISO 1307 Standard)
* Tolerance on length: ± 1 % (ISO 1307 Standard)
