Applications
Suction and discharge of virtually all corrosive chemicals: strong acids, high aromatic solvents, chlorinated or oxygenised solvents, aromatic hydrocarbons, etc.
For road and rail tankers, unloading bays, as well as mobile or fixed installations in chemical works and associated industries.
Advantages
- A versatile hose for a wide range of chemicals.
- Very good mechanical strength.
- Hose construction gives excellent bending radius.
- Smooth tube for easier washing out (up to 140°C during 30 minutes).
- Cover has excellent resistance to ageing, atmospheric conditions and ozone as well as optimum resistance to abrasion and chemicals.
- Can be fitted with many types of couplings.
- Can also be used for transfer of aqueous, acidic, alcoholic or fatty foods.
Design

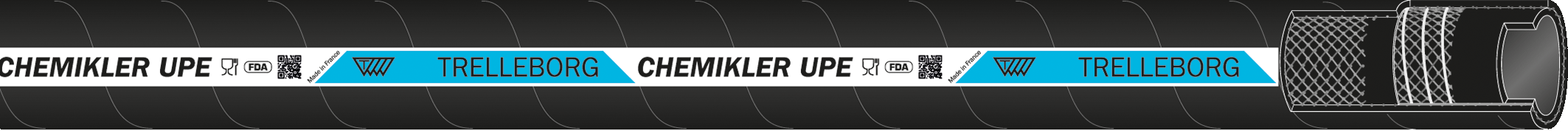

Technical drawing

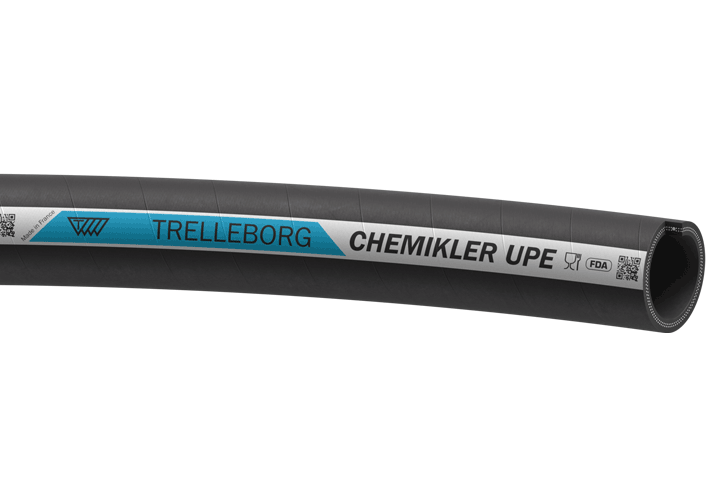

Overview
Inner tube
chemical resistant UPE (ultra high molecular weight polyethylene), black, smooth.
Reinforcement
synthetic textile with embedded steel helix
Cover
chemical and weather resistant EPDM, black, fabric impression.
Temperature range
-40 to +100
Standard/Approval
Specially designed fittings are available, please contact us for further information in order to get optimum connections.
Additional information
This hose has been checked and approved by INERIS (french notified body) for use in ATEX areas.
ID>100 mm: not included in EN12115.
Max. vacuum: 0.9 bar.
ID>100 mm: not included in EN12115.
Max. vacuum: 0.9 bar.
Technical Specifications
| ID (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number |
¤ Upon availability. * Tolerance on length: ± 1 % (ISO 1307 Standard)
Downloads

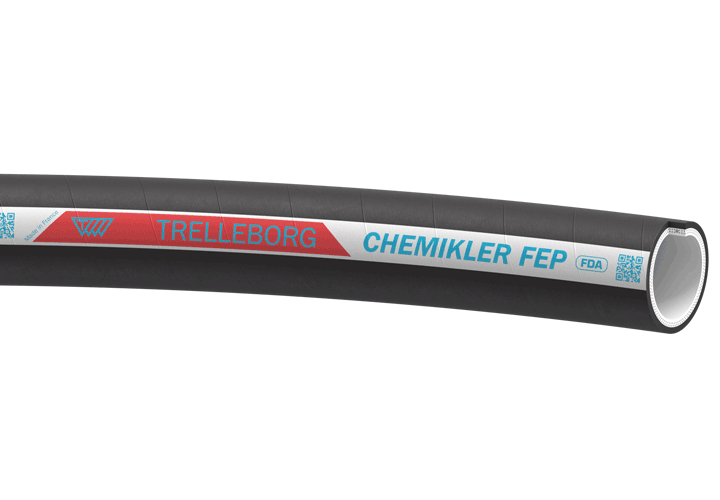

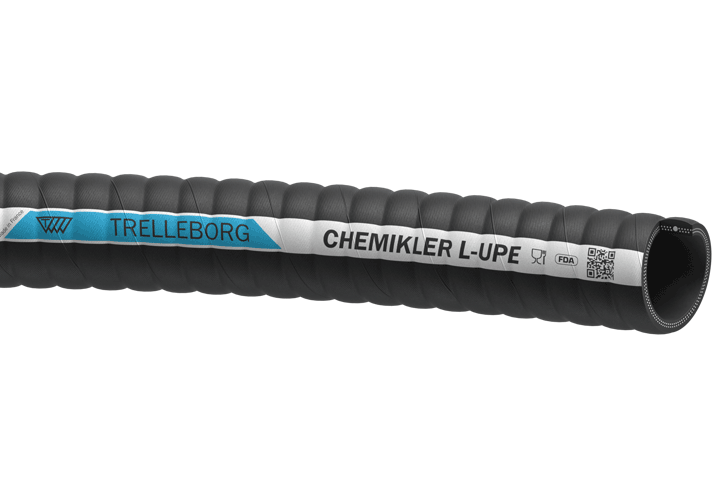

Chemikler range
