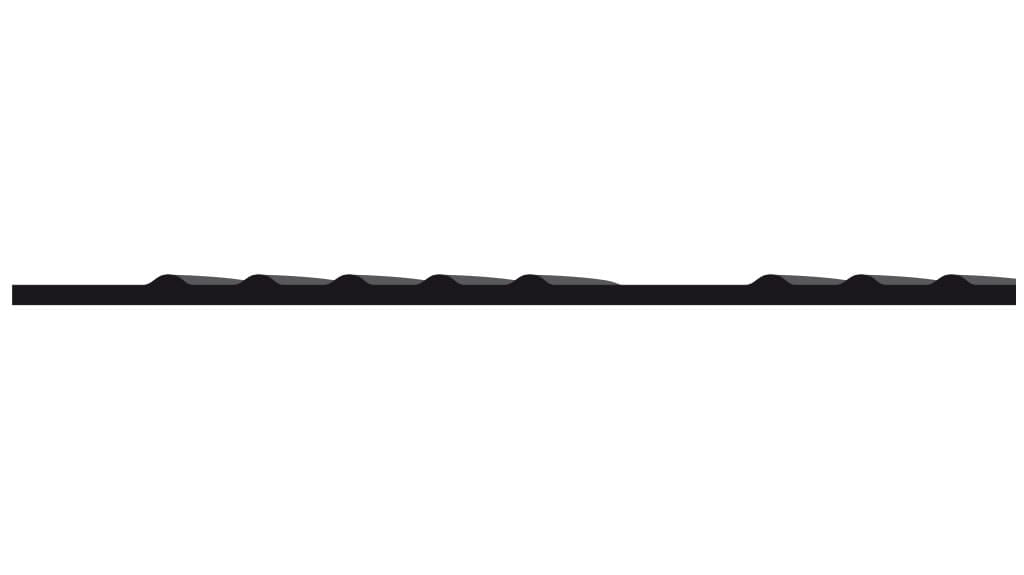

CHECKER + profile

Checker (MK)

Overview
ill_gear_bg_rgb
Features

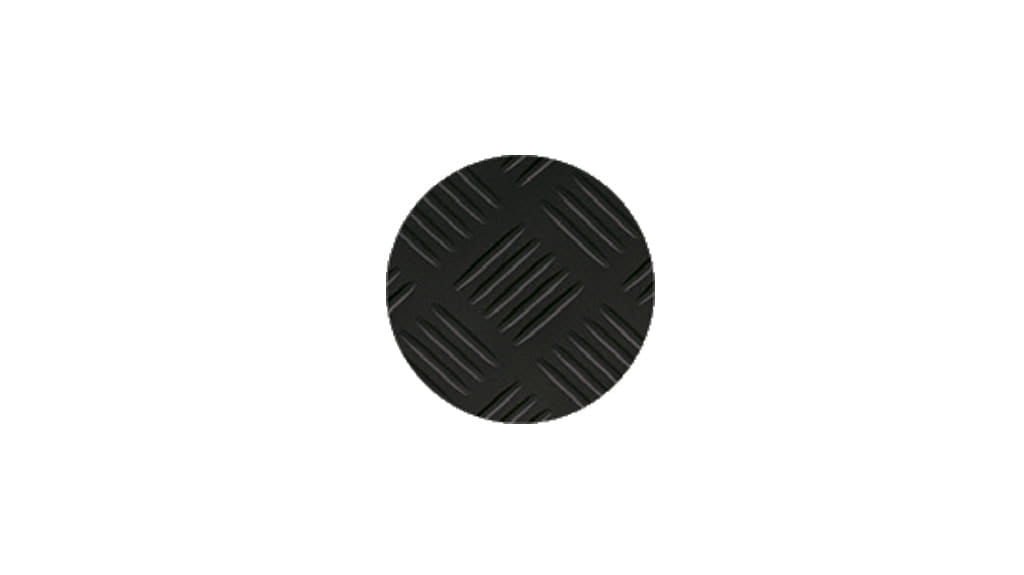

Checkered pattern.
ill_alternative_bg_rgb
Application
Suitable for industrial site.

Indoor installations.

Warehouses, aisles, locker rooms, machine or heavy equipment fronts, with no specific chemical or mechanical requirements.
ill_coated_systems_bg_rgb
Advantages
High dimensional and color stability
High hardness and abrasion properties, which means a better transit resistance
Good scratch resistance
Good adhesion to different possible substrates
Non-slippery
Thermal and acoustic insulation
Noise, vibration, and cold propagation reduction
Very good wear and tear resistance
Excellent walking and standing comfort
Easy to clean and low maintenance
ill_protect_bg_rgb
Benefit
Safety
Comfort
Economy
Mechanical, Physical and Chemical Properties
Mechanical
Measure characteristic Standard Value
Hardness ASTM D2240 70 ± 5 Shore A
Abrasion resistance (5N) ISO 4649 ≤ 200 mm³
Residual indentation EN ISO 24343 ≤ 0.15 mm
Dimensional stability EN ISO 23999 ±0.3 %
Diluted acids and bases ISO 10140-3 12 db
Chemical Resistance
Common cleaning products EN 423 Good
Dimensions
Thickness (mm) Width (mm) Length (m) Weight (kg/m2)
3.0±0.3 1400.0±2% 10.0±2% 3.95
5.0±0.4 1400.0±2% 10.0±2% 6.96
Identification
Branding Without.
Back face Fabric impression.
Packaging Rolled on cardboard tube Ø 80mm.
Wrapping Black polyethylene film.
Labelling Self-adhesive label indicating product name, dimensions, area in m², nominal weight, and product code to allow product traceability.
Downloads
