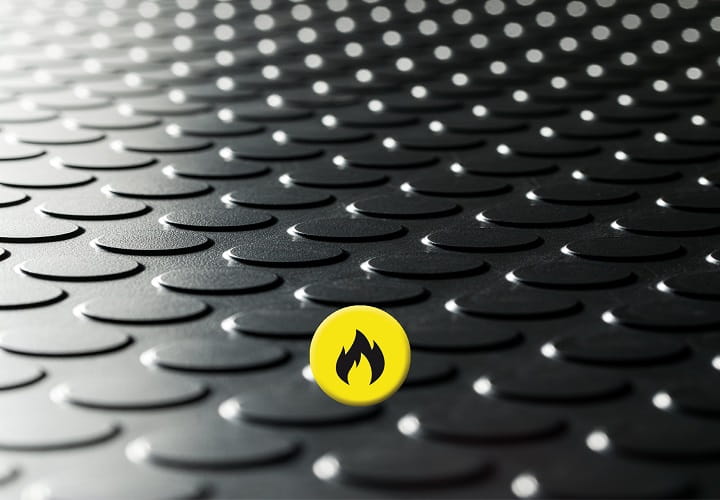

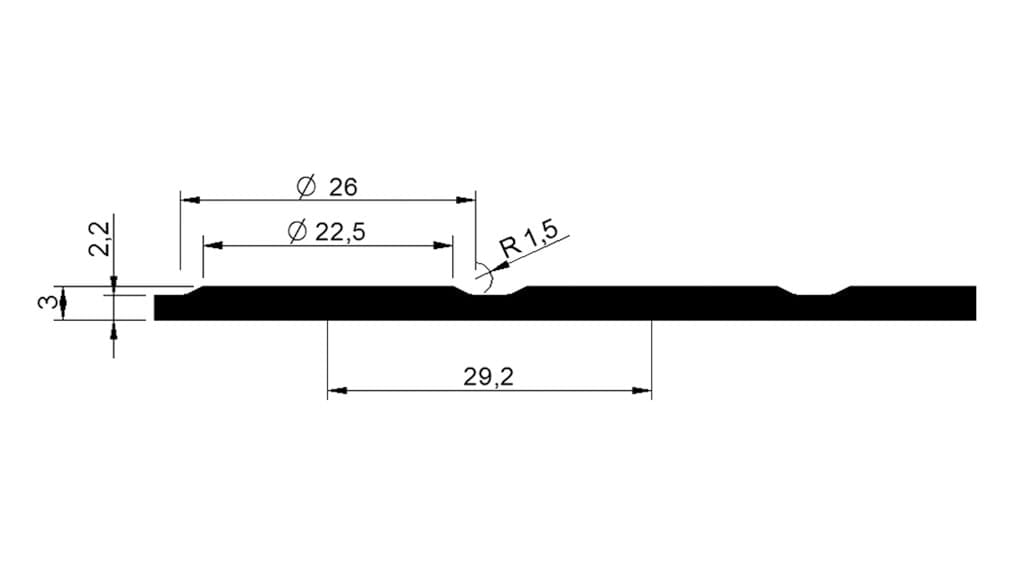

FIREMAT profile

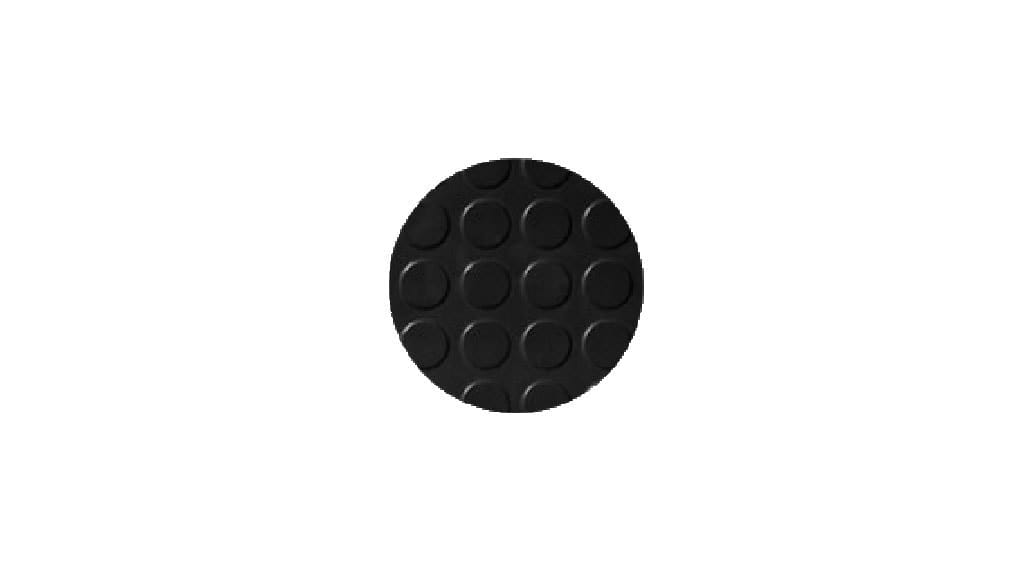

Circular studs (MC 2K1)

Overview
ill_gear_bg_rgb
Features
Fire resistant and low, translucent, and non toxic smoke emission matting qualities.
Reaction to fire and smoke characteristics Bfl s1, following EN 13501-1.
Circular studs.
ill_alternative_bg_rgb
Application
Suitable for:
- public or industrial area where fire protection is required (airports, supermarkets, swimming pools, sports halls, etc.)
- mass transport (bus, railway, ships, underground,etc.)
ill_coated_systems_bg_rgb
Advantages
Fire-retardant.
Low reduced emission of smoke opacity, for easy finding of emergency exits
Thermal and acoustic insulation
Excellent walking and standing comfort
Non-slippery 
Easy to clean and low maintenance
Noise, vibration, and cold propagation reduction
ill_protect_bg_rgb
Benefit
Safety
Cleanliness, hygiene
Comfort
Service life
Mechanical, Physical and Chemical Properties
Mechanical
Measure characteristic Standard Value
Hardness ASTM D2240 80 ± 5 Shore A
Abrasion resistance (5N) ISO 4649 ≤ 200 mm³
Residual indentation EN ISO 24343 ≤ 0.15 mm
Dimensional stability EN ISO 23999 ±0.3 %
Diluted acids and bases ISO 10140-3 12 db
Chemical Resistance
Common cleaning products EN 423 Good
Dimensions
Color Thickness (mm) Width (mm) Length (m) Weight (kg/m2) Pattern
Black 3.0±0.3 1200.0±2% 10.0±2% 4.4 MC 2K1
Grey 3.0±0.3 1000.0±2% 10.0±2% 4.6 MC 2K1
Grey 3.0±0.3 1200.0±2% 10.0±2% 4.6 MC 2K1
Black 3.0±0.3 1000.0±2% 10.0±2% 4.4 MC 2K1
Identification
Branding Without.
Back face Buffed.
Packaging Rolled on cardboard tube Ø 80mm.
Wrapping Black polyethylene film.
Labelling Self-adhesive label indicating product name, dimensions, area in m², nominal weight, and product code to allow product traceability.
Downloads

Firemat Black D914 0030045

Rubber Sheeting and Matting

Firemat Grey D912 0039173

Firemat Grey D912 0030046

Firemat Black D914 MCD91400003002
