Product Description

The MDS mounting is easy to install based on a 2 part single bolt installation. There is no requirement for radius or chamfered installation hole and a steel flange prevents rubber wear at the bracket interface. The bonded steel snubbing cup limits vertical movements and prevents excessive strain in rubber. The cup is encapsulated in rubber to prevent corrosion.

The MDS mounting is designed to take high dynamic shock loads but to limit mount movements in all directions, MDS (Multi-Directional Snubbing). In the static working load range, the MDS mounts have linear stiffness characteristics allowing easy prediction of mount deflection and isolation performance.


Typical Applications Include:
• Engines
• Small cabs on Off-Highway vehicles

Show more
Show less

Product Data

REFERENCE DRAWING NO. PART NO. HARDNESS (IRHD) DIMENSIONS (mm) MAX LOAD
(N) 		AXIAL STIFFNESS
(N/mm) 		BOLT SIZE BOLT TORQUE
(Nm)
Ød ØD ØD1 H H1 C E
(+/- 0.5mm) 		F *
MDS 55 17-4967 10-02182 40 13 55.5 29.8 29 22 29.7-30.0 14.7-15.3 26.5 350 165 M12 125
10-02183 45 400 186
10-04797 55 650 300
10-04817 65 950 450
MDS 66 17-2280 10-01802 45 18.8 66 39.8 39 29.5 40.0-40.3 19.5 35 700 320 M16 240
10-01803 55 1200 540
10-01804 65 1700 800
MDS 80 17-2243 10-01799 45 16.2 80 37.8 41.5 32 37.9-38.2 19.5 37.5 900 350 M16 240
10-04778 50 1150 450
10-01800 55 1400 550
10-01801 65 2000 800
MDS85 17-2241 10-03705 45 16.2 88 41.8 40 32 42.0-42.3 16 35 900 400 M16 240
10-02176 55 1400 700
10-04818 65 2000 1065
MDS95 17-4474 10-04816 45 16.2 98 46.6 40 32 47.5-48.3 16 35 1900 580 M16 333
10-02256 55 2400 745
10-02255 65 3700 1135
10-02259 70 4500 1365
MDS 110 17-2285 10-03853 45 22.5 110 56.9 51.5 39 57.2-57.5 25 46.5 2300 724 M20/M22 502/685
10-03854 55 3600 976
10-03855 65 5100 1382
10-04094 75 7650 2000
MDS 130 17-4196 10-01984 45 30.2 128 69.2 58 43 70.75-71.25 40 57 2300 700 M30 750
10-01985 55 5000 1160
10-01986 65 6000 1600
10-04613 70 7350 1830

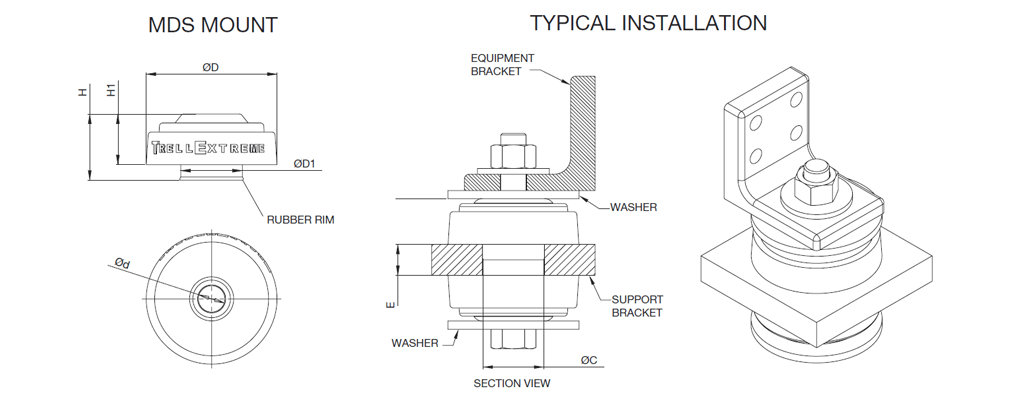

Technical Drawing
