Product Description

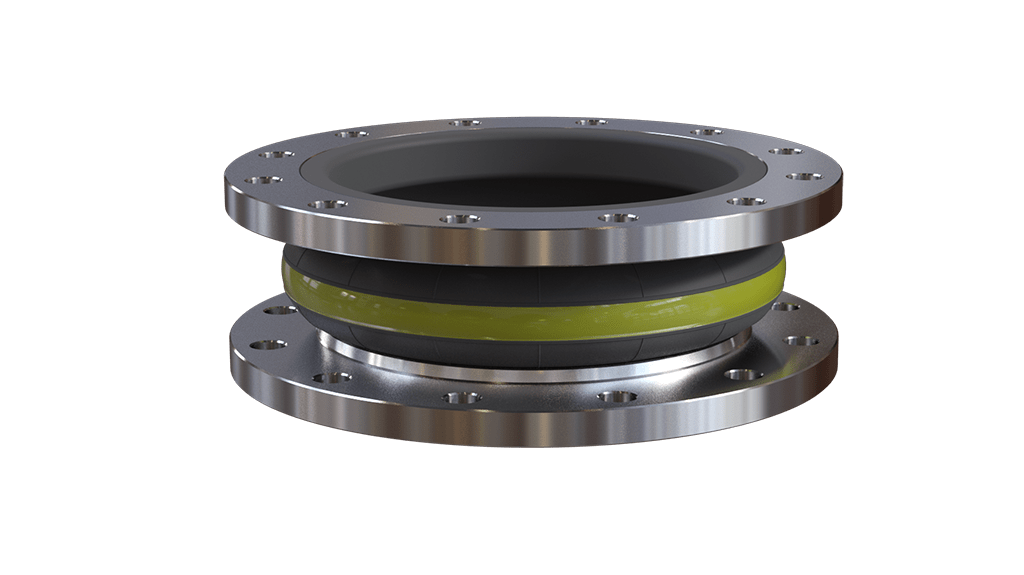

The ERV Yellow rubber expansion joint is used for flexible connections in pipeline systems for petrochemical applications. It is suitable for use with

fuels, fuels with ethanol additives such as E85, DIN fuels with up to 50% aromatics and natural gas. The ERV Yellow is not suitable for liquefied Petrol Gas (LPG). The flanges of the ERV Yellow are rotatable and standard available in DIN PN10 and PN16. The operating temperature depends on the medium and ranges from -20 °C to +90 °C. The maximum working pressure is 16 bar, 10 bar for larger diameters.

CONSTRUCTION

  • Durable nitrile rubber (NBR) inner wall, seamless
  • PA textile reinforced
  • Chloroprene (CR) outer wall
  • Electrically conductive
  • Rotating flanges, galvanized steel


APPROVALS

Approved by DNV-GL, Lloyd’s Register, Bureau Veritas, RINA, ABS, CCS, BWB and DVGW. Complies with the DIN VG 95958/9 standard.



Options

  • Most sizes available in different neutral lengths
  • Flanges according to DIN PN6, PN25, PN40, ASA 150 lbs or BS10
  • Flanges in stainless steel or bronze
  • Tie rods
  • PTFE lining
  • Vacuum support rings
  • Fire protection cover
Show more
Show less

Product Data

PART No. INSIDE DIAMETER A (MM) LENGTH B (MM) WORKING PRESSURE (BAR) FLANGE DIMENSIONS CLASS OUTSIDE DIAMETER C (MM) PITCH D (MM) E x F (NUMBER x MM)
300 041 025 25 130 16 DIN PN10/16 115 85 4x14
300 041 032 32 130 16 DIN PN10/16 140 100 4x18
300 041 040 40 130 16 DIN PN10/16 150 110 4x18
300 041 050 50 130 16 DIN PN10/16 165 125 4x18
300 041 065 65 130 16 DIN PN10/16 185 145 4x18
300 041 080 80 130 16 DIN PN10/16 200 160 8x18
300 041 100 100 130 16 DIN PN10/16 220 180 8x18
300 041 125 125 130 16 DIN PN10/16 250 210 8x18
300 041 150 150 130 16 DIN PN10/16 285 240 8x22
300 041 201 200 130 10 DIN PN10 340 295 8x22
300 041 200 200 130 16 DIN PN16 340 295 12x22
300 041 251 250 130 10 DIN PN10 395 350 12x22
300 041 250 250 130 16 DIN PN16 405 355 12x26
300 041 301 300 130 10 DIN PN10 445 400 12x22
300 041 300 300 130 16 DIN PN16 460 410 12x26
300 041 351 350 200 10 DIN PN10 505 460 16x22
300 041 401 400 200 10 DIN PN10 565 515 16x26
300 041 501 500 200 10 DIN PN10 670 620 20x26
300 041 601 600 200 10 DIN PN10 780 725 20x30
300 041 701 700 260 10 DIN PN10 895 840 24x30
300 041 801 800 250 10 DIN PN10 1015 950 24x33
300 041 901 900 300 10 DIN PN10 1115 1050 28x33
300 041 902 1000 300 10 DIN PN10 1230 1160 28x26

Movements
The maximum movements for the ERV Yellow expansion joint stated below apply to the neutral length for operating temperatures up to +50 ºC and are not in combination (no lateral/axial movements simultaneously). The permissible movements are reduced by 25% for temperatures between +50 ºC and +70 ºC and by 40% for temperatures between +70 ºC and +90 ºC. Use of the optional vacuum ring leads to a reduction of 50%.
NOMINAL DIAMETER (MM) COMPRESSION (MM) ELONGATION (MM) LATERAL (MM) ANGULAR (DEGREES)
25-80 30 20 ± 30 ± 30
100-150 30 20 ± 30 ± 20
200 25 30 ± 30 ± 10
250-300 10 30 ± 15 ± 5
350-600 40 35 ± 30 ± 8
700 40 30 ± 30 ± 5
800 40 35 ± 35 ± 5
900-1000 40 40 ± 40 ± 5
