Product description

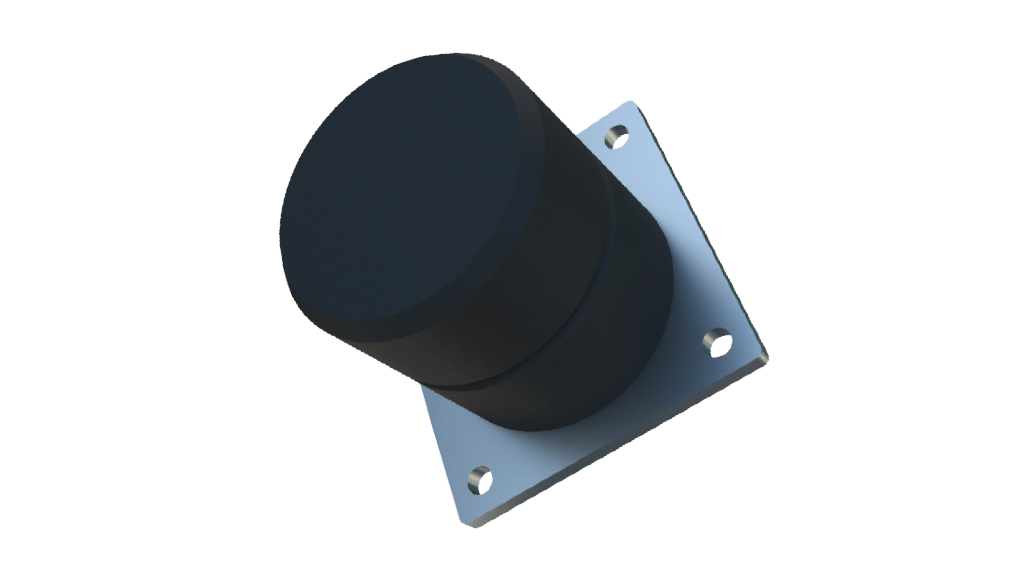

Zellpuffer features a very robust design. The wide selection of sizes allows for universal use. Zellpuffers are particularly suited as resilient deflection limiters and for buffering shock loads with mobile and nonmobile driven machines and as stops in general. The Zellpuffer are manufactured from Pu, Diplocell.

Product data

DRAWING NO.

PART NO.

DIMENSIONS (mm)

A

ØB

C

D

E

F

ØG

H

PLATE FIXED ZELLPUFFER

70.10031

54006110

40

80

-

-

110

80

12,5

10

70.10032

54006111

80

80

-

-

110

80

12,5

10

70.10033

54006112

120

80

-

-

110

80

12,5

10

70.10013

54006092

100

100

-

-

125

100

12,5

10

70.10014

54006093

150

100

-

-

125

100

12,5

10

70.10015

54006094

63

125

-

-

160

125

17

12

70.10016

54006095

125

125

-

-

160

125

17

12

70.10017

54006096

190

125

-

-

160

125

17

12

70.10018

54006097

80

160

-

-

200

160

17

12

70.10019

54006098

160

160

-

-

200

160

17

12

70.10020

54006099

240

160

-

-

200

160

17

12

70.10021

54006100

100

200

-

-

250

200

21

14

70.10022

54006101

200

200

-

-

250

200

21

14

70.10024

54006103

300

200

-

-

250

200

21

14

70.10025

54006104

250

250

-

-

315

250

21

15

70.10026

54006105

375

250

-

-

315

250

21

15

70.10027

54006106

475

315

-

-

400

315

21

15

70.10029

54006108

400

400

-

-

500

400

25

20

70.10030

54006109

600

400

-

-

500

400

25

20

SHAFT FIXED ZELLPUFFER

70.10085

54006164

40

80

M12

35

-

-

-

-

70.10086

54006165

80

80

M12

35

-

-

-

-

70.10087

54006166

120

80

M12

35

-

-

-

-

70.10065

54006144

100

100

M12

35

-

-

-

-

70.10068

54006147

150

100

M12

35

-

-

-

-

70.10069

54006148

63

125

M12

35

-

-

-

-

70.10070

54006149

125

125

M12

35

-

-

-

-

70.10072

54006151

190

125

M12

35

-

-

-

-

70.10073

54006152

80

160

M12

35

-

-

-

-

70.10074

54006153

160

160

M12

35

-

-

-

-

70.10075

54006154

240

160

M12

35

-

-

-

-

70.10076

54006155

100

200

M12

35

-

-

-

-

70.10077

54006156

200

200

M12

35

-

-

-

-

70.10078

54006157

300

200

M12

35

-

-

-

-

70.10080

54006159

125

250

M24

80

-

-

-

-

70.10081

54006160

250

250

M24

80

-

-

-

-

70.10082

54006161

375

250

M24

80

-

-

-

-

70.10083

54006162

315

315

M24

80

-

-

-

-
