Applications

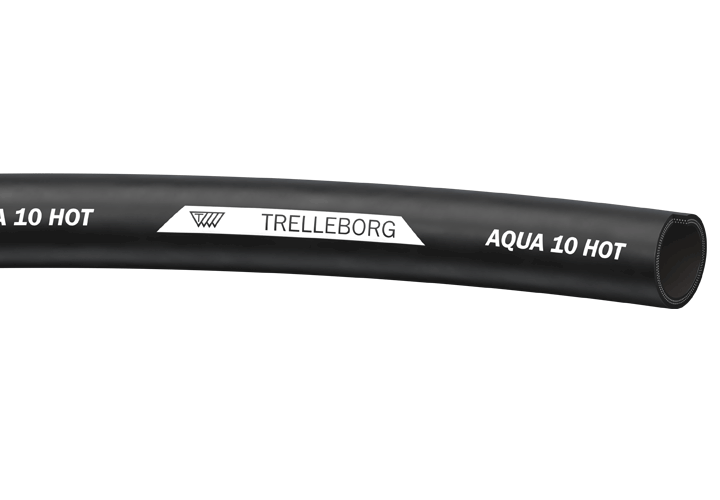

Hot water delivery hose used in industry, construction and agricultural applications.
Design
Overview
Inner tube
high temperature resistant EPDM, black, smooth.
Reinforcement
synthetic textile
Cover
high temperature resistant EPDM, black, fabric impression.
Temperature range
-30 to +100
Technical Specifications
| ID (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number |
127 |
141 |
10 |
30 | 1270 | 3.7 | 40 | 5503646 | |
152 |
168 |
10 |
30 | 1520 | 210.400 | 40.00 | 5503647 | |
32 |
42 |
10 |
30 | 320 | 0.73 | 40 | 5503649 | |
38 |
48 |
10 |
30 | 380 | 0.85 | 40 | 5503650 | |
51 |
63 |
10 |
30 | 510 | 1.37 | 40 | 5503651 | |
63 |
75 |
10 |
30 | 630 | 67.200 | 40.00 | 5503652 | |
76 |
89 |
10 |
30 | 760 | 2.22 | 40 | 5503653 |
¤ Upon availability.
* Tolerance on length: ± 1 % (ISO 1307 Standard)
* Tolerance on length: ± 1 % (ISO 1307 Standard)
