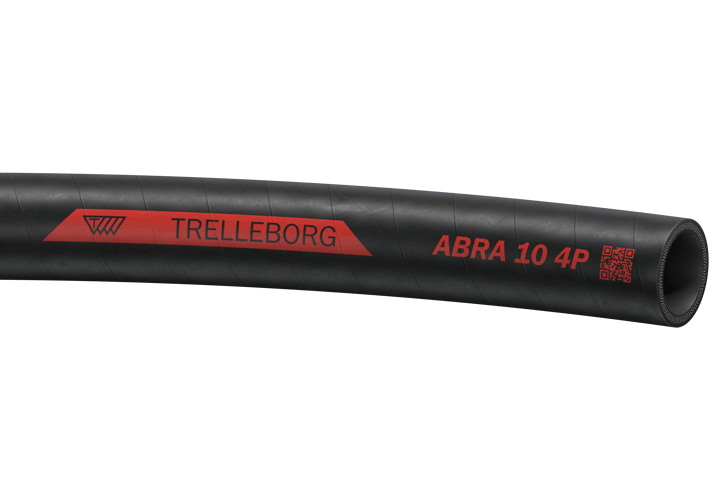

ABRA 10 4P

Applications

High abrasive resistant sandblast hose used for the delivery of sand, steel shot, stone.

Overview

Inner tube

NR, black, smooth.

Reinforcement

synthetic textile

Cover

abrasion resistant SBR, black, fabric impression.

Temperature range

-30 to +80

Technical Specifications

ID (mm)	OD (mm)	Working Pressure (bar)	Bursting pressure (bar)	Max. vacuum (bar)	Bending radius (mm)	Weight (kg/m)	Length (m)	Article number
19.0	38	10	30		160	1	40	5513724
25	48	10	30		200	1.59	40	5513725
32	55	10	30		260	1.78	40	5513726
38	60.4	10	30		300	2.07	40	5513727
51	73	10	30		410	2.56	40	5513756

¤ Upon availability.
* Tolerance on length: ± 1 % (ISO 1307 Standard)
