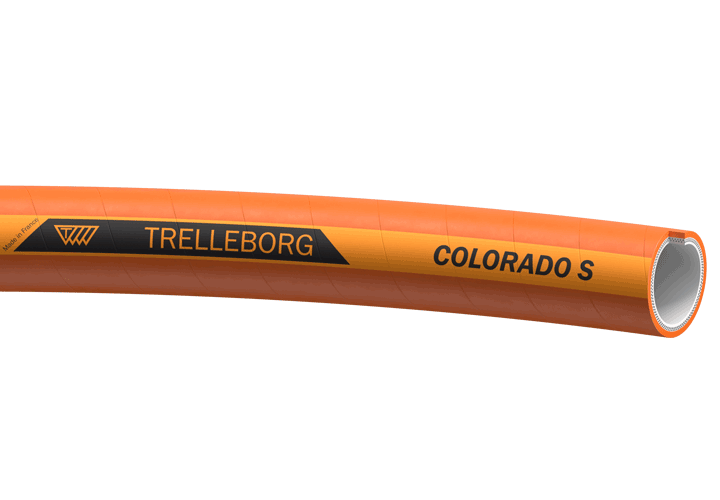

Applications
For suction and discharge of domestic water, industrial water, effluents, slurry and liquid manure.
Advantages
- Wide range of diameters to suit pumps in all fields of industry.
- Excellent flexibility.
- Constant working pressure of 16bar throughout the range.
- High resistance to temperatures, conductive and abrasion resistant tube.

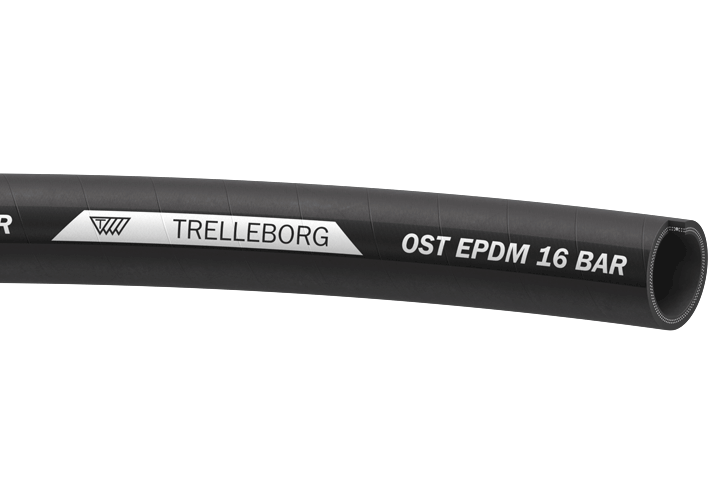

Design

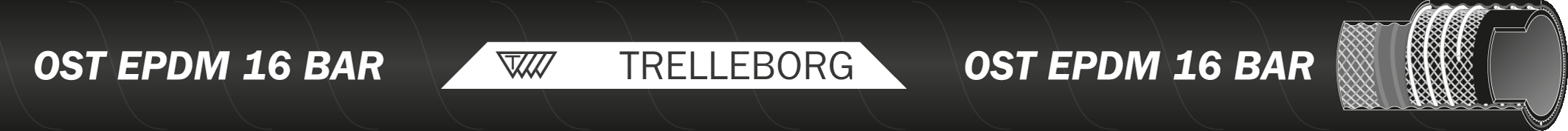

Technical drawing
Overview
Inner tube
EPDM, black, smooth.
Reinforcement
synthetic textile with embedded steel helix
Cover
EPDM, black, fabric impression.
Temperature range
-40 to +120
Technical Specifications
| ID (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number |
102 |
117 |
16 |
48 | 0.9 | 500 | 77.000 | 20.00 | 59007864 |
102 |
117 |
16 |
48 | 0.9 | 500 | 154.000 | 40.00 | 5503206 |
127 |
145 |
16 |
48 | 0.9 | 645 | 6.07 | 20 | 59007865 |
127 |
145 |
16 |
48 | 0.9 | 645 | 6.07 | 40 | 5513869 |
152 |
172 |
16 |
48 | 0.9 | 910 | 8.53 | 20 | 59007866 |
152 |
172 |
16 |
48 | 0.9 | 910 | 8.53 | 40 | 5503207 |
203 |
229 |
16 |
48 | 0.9 | 1150 | 15.65 | 20 | 5503602 |
203 |
229 |
16 |
48 | 0.9 | 1150 | 15.65 | 40 | 5503580 |
25 |
35 |
16 |
48 | 0.9 | 100 | 0.68 | 40 | 5503200 |
254 |
284 |
16 |
48 | 0.9 | 1650 | 21.27 | 10 | 5503604 |
32 |
42 |
16 |
48 | 0.9 | 125 | 0.86 | 40 | 5503201 |
38 |
49 |
16 |
48 | 0.9 | 150 | 1.03 | 40 | 5503202 |
51 |
62 |
16 |
48 | 0.9 | 250 | 60.000 | 40.00 | 5503203 |
63 |
77 |
16 |
48 | 0.9 | 325 | 2.31 | 20 | 59007862 |
63 |
77 |
16 |
48 | 0.9 | 325 | 2.31 | 40 | 5503204 |
76 |
90 |
16 |
48 | 0.9 | 400 | 2.65 | 20 | 59007863 |
76 |
90 |
16 |
48 | 0.9 | 400 | 106.000 | 40.00 | 5503205 |
¤ Upon availability.
* Tolerance on length: ± 1 % (ISO 1307 Standard)
* Tolerance on length: ± 1 % (ISO 1307 Standard)
