Applications
Sewer jetting and heavy duty, high pressure water cleaning.
Advantages
- Very low sliding resistance which allows: higher cleaning efficiency, reduction of cleaning time and therefore, reduction of fuel consumption.
- Longer lifespan thanks to the special cover compound with higher abrasion resistance.
- Better flexibility, even at low temperatures.
- Easy to handle and user friendly.
- Deformation resistance.
- Extra high strength and security due to aramide reinforcement.
Design

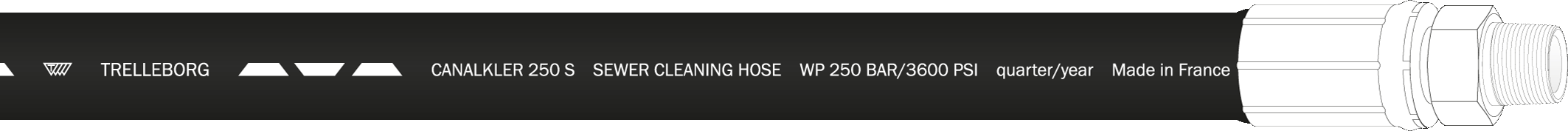

Technical drawing
Overview
Inner tube
SBR, black, smooth.
Reinforcement
aramide textile, braided
Cover
SBR/NR, black, smooth. Very low sliding resistance.
Temperature range
-30 to +80
Standard/Approval
All hoses are assembled with BSP female/BSP male.
All assembled hoses are pressure tested at 375bar and have an unique hose number.
All assembled hoses are pressure tested at 375bar and have an unique hose number.
Additional information
Delivered with test certificate on each factory assemblied hose.
Technical Specifications
| ID (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number |
13.0 |
25.6 |
250 |
625 | 70 | 19.400 | 40.00 | 5014178 | |
13.0 |
25.6 |
250 |
625 | 70 | 28.960 | 60.00 | 5014179 | |
13.0 |
25.6 |
250 |
625 | 70 | 38.520 | 80.00 | 5014180 | |
13.0 |
25.6 |
250 |
625 | 70 | 48.080 | 100.00 | 5014916 | |
13.0 |
25.6 |
250 |
625 | 70 | 57.640 | 120.00 | 5014005 | |
19.0 |
31.6 |
250 |
625 | 90 | 24.173 | 40.00 | 5014181 | |
19.0 |
31.6 |
250 |
625 | 90 | 47.853 | 80.00 | 5014182 | |
19.0 |
31.6 |
250 |
625 | 90 | 59.693 | 100.00 | 5014459 | |
19.0 |
31.6 |
250 |
625 | 90 | 71.533 | 120.00 | 5014006 | |
25 |
39.3 |
250 |
625 | 100 | 34.224 | 40.00 | 5014183 | |
25 |
39.3 |
250 |
625 | 100 | 42.624 | 50.00 | 5014874 | |
25 |
39.3 |
250 |
625 | 100 | 67.624 | 80.00 | 5014184 | |
25 |
39.3 |
250 |
625 | 100 | 84.324 | 100.00 | 5014238 | |
25 |
39.3 |
250 |
625 | 100 | 101.024 | 120.00 | 5014007 | |
25 |
39.3 |
250 |
625 | 100 | 126.074 | 150.00 | 5014461 | |
25 |
39.3 |
250 |
625 | 100 | 134.424 | 160.00 | 5014185 | |
25 |
39.3 |
250 |
625 | 100 | 151.124 | 180.00 | 5014186 | |
25 |
39.3 |
250 |
625 | 100 | 167.824 | 200.00 | 5014520 | |
25 |
39.3 |
250 |
625 | 100 | 201.224 | 240.00 | 5014733 | |
32 |
47.6 |
250 |
625 | 130 | 46.586 | 40.00 | 5014187 | |
32 |
47.6 |
250 |
625 | 130 | 91.706 | 80.00 | 5014188 | |
32 |
47.6 |
250 |
625 | 130 | 136.826 | 120.00 | 5014008 | |
32 |
47.6 |
250 |
625 | 130 | 170.666 | 150.00 | 5014466 | |
32 |
47.6 |
250 |
625 | 130 | 181.946 | 160.00 | 5014189 | |
32 |
47.6 |
250 |
625 | 130 | 204.506 | 180.00 | 5014190 | |
32 |
47.6 |
250 |
625 | 130 | 227.066 | 200.00 | 5014655 | |
38 |
54.0 |
250 |
500 | 155 | 161.963 | 120.00 | 5014009 |
¤ Upon availability.
* Tolerance on length: ± 1 % (ISO 1307 Standard)
* Tolerance on length: ± 1 % (ISO 1307 Standard)
